C.10 dual-frequency coaxial speakers

The technical patent number of the product：ZL 2018 2 1981273.9

Speaker features:

       Coaxial horn design only characteristic is: have the same sound of more accurate phase points, make its in the working status of the frequency range wider and larger, so that the tone changes due to the interference effect between the frequency and rate of distortion is minimized, thus the sound effect of coaxial horn has a very high voice reduction degree and strong penetrating power, and can clearly reflect the sound frequency administrative levels feeling and clean degree.Due to the outstanding advantages of i.e.v.ice neodymium magnetic coaxial horn in medium and high frequency and the heavy low-frequency effect, the high density cohesion is enhanced, which highlights the instantaneous dynamic speed sense of i.e.v.ice neodymium magnetic coaxial horn, resulting in the audio-visual audience can feel the reality of the performance scene in different environments.

Application environment:

       Super compact and cost-effective model, with a wide frequency band, to overcome the coaxial loudspeaker low frequency corresponding bad shortcomings, high music, language resolution and coaxial sound image consistent sound amplification characteristics, perfect interpretation of point sound source music fun.Widely used in Live performance, stage band return;KTV entertainment, music bar and professional language amplification scene.

Specification parameters:

Frequency response（-10dB）：68Hz-18KHz

Rated impedance：8Ω

Sensitivity（1W/1m）：95dB

Maximum sound pressure：125dB

Nominal covering Angle：60°Conical cover

Structure：1X10”Bass；1X1.75”High

Rated power：350W

Socket：Two 4-wick SPEAKON outlets

Hanging point：8mm suspension loop

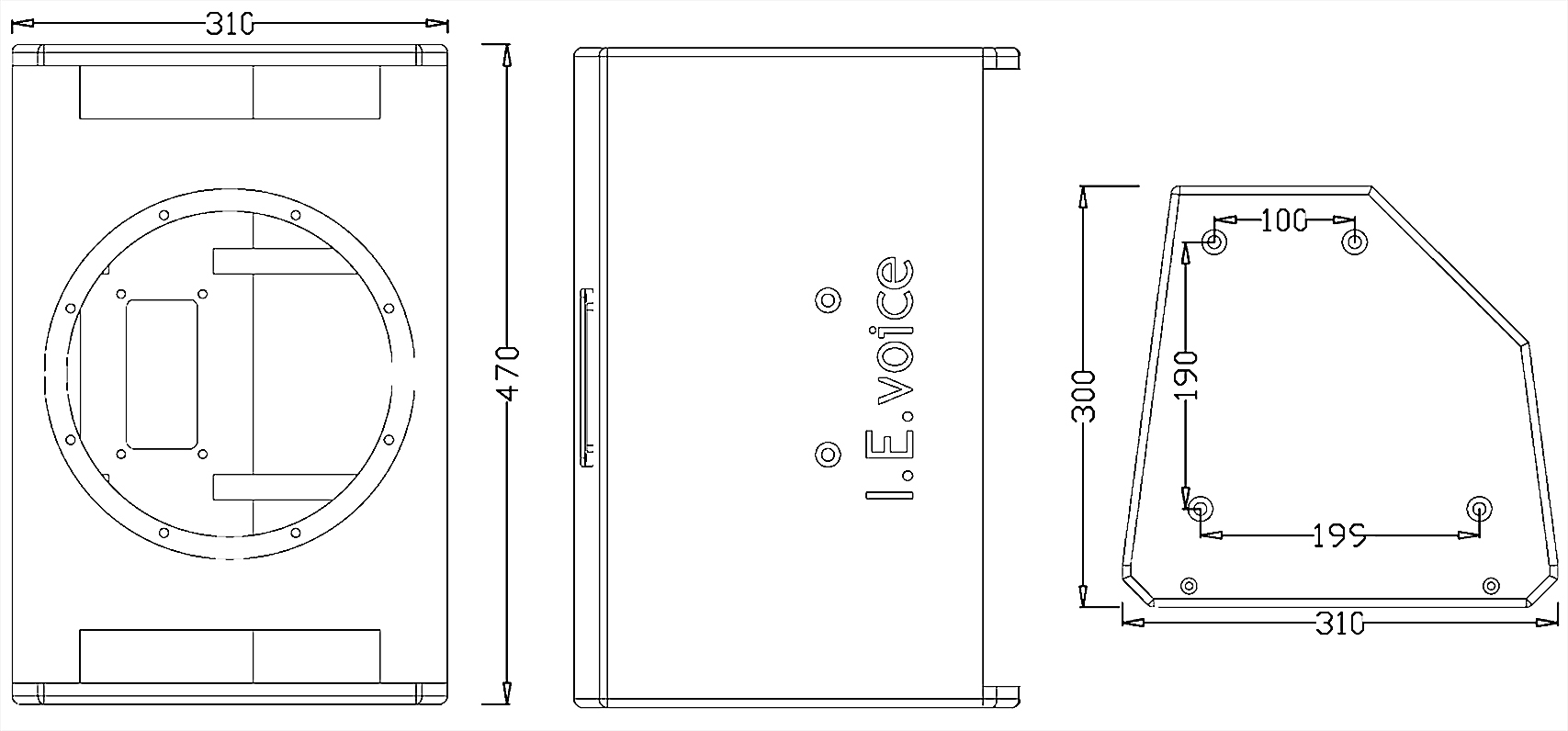

Dimensions（WxHxD)：310 x 470 x 300mm

Weight：14.5Kg（Contain the packaging）

Color：Black /  White
