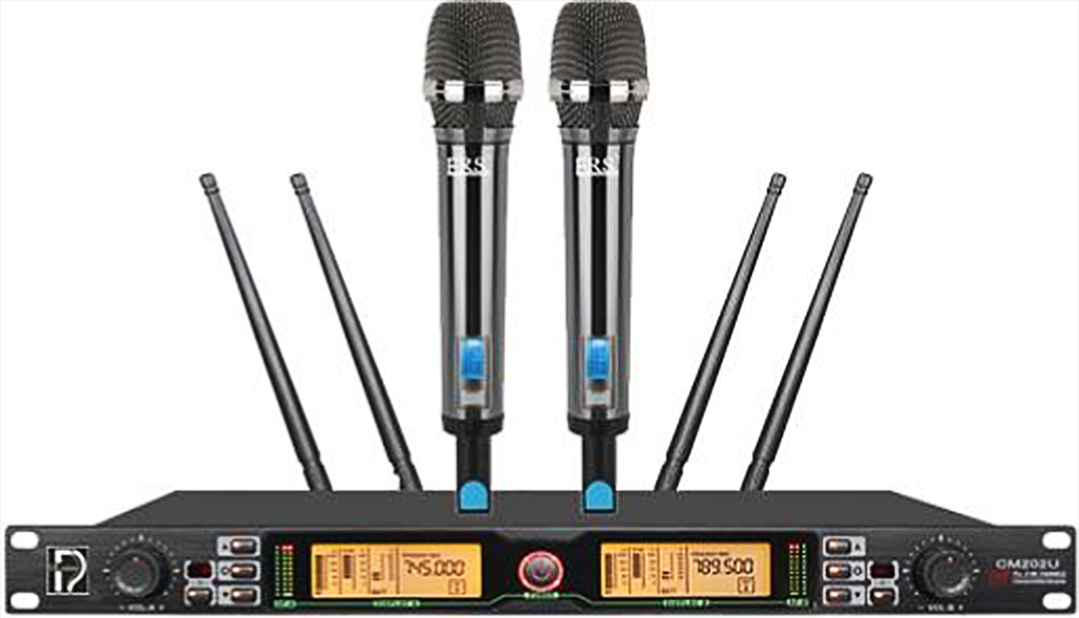

CM202U handheld wireless microphone
Special products:
1. True diversity receiver, dual channel independent selection system, can minimize the occurrence of cut-off frequency.
2. dual channel independent AFS frequency automatic search function, can quickly scan the work environment in the least worry frequency and lock.
3. The receiver and transmitter synchronize the codes with one key through IR infrared frequency matching technology.
4. professional performance level phase lock circuit, with noise lock noise control and digital pilot technology, when the transmitter offWhen closed, the pilot control will mute the AF signal to suppress the noise, and the corresponding receiver will be mute at the same time.Ensure the effective blocking of the dry signal.
5. Backlit LED display indicates RF and AF signal strength, battery status, diversity channel indicator (A/B), frequency, frequency group/channel, etc.
6. This product adopts the patented technology of "audio reference compression expansion", with excellent audio dynamic expansion response and automatic level control circuit.
7. The cm-202u true diversity wireless system is designed for touring and fixed installation purposes, providing the highest reliability, sound quality and transmission stability.
8. Optional head or collar.
Technical parameters:
|
Receiver |
Ejector |
|
Working frequency：600~690MHz |
Working frequency:600~690MHz |
|
PLL phase locked loop frequency synthesis technology |
Frequency stability：±0.002 |
|
2*100 channel free choice, LCD digital display |
Pick up head gain adjustment knob: -20db to +35dB |
|
SNR:>105dB |
FM maximum modulation frequency bias：±45KHz |
|
T.H.D distortion:<0.5% |
Rf output power: high 10mW/ low 5mW |
|
Frequency response:40Hz-18KHz |
Higher harmonics: lower than 60dB of main wave reference |
|
Modulation: FM |
Operating battery: 2 AA batteries - can be used continuously for about 8 hours |
|
FM maximum modulation frequency bias：±45KHz RF |
Rf transmission frequency range: there are 200 optional frequencies in the 50MHz bandwidth |
|
Higher harmonics: lower than 60dB of main wave reference |
Working range: 100 m under typical conditions, 150 m outside as the crow flies |
|
Frequency response：40~18,000Hz，（+1 dB，-3 dB） |
Frequency response：40–,000,(+1,–3) |
