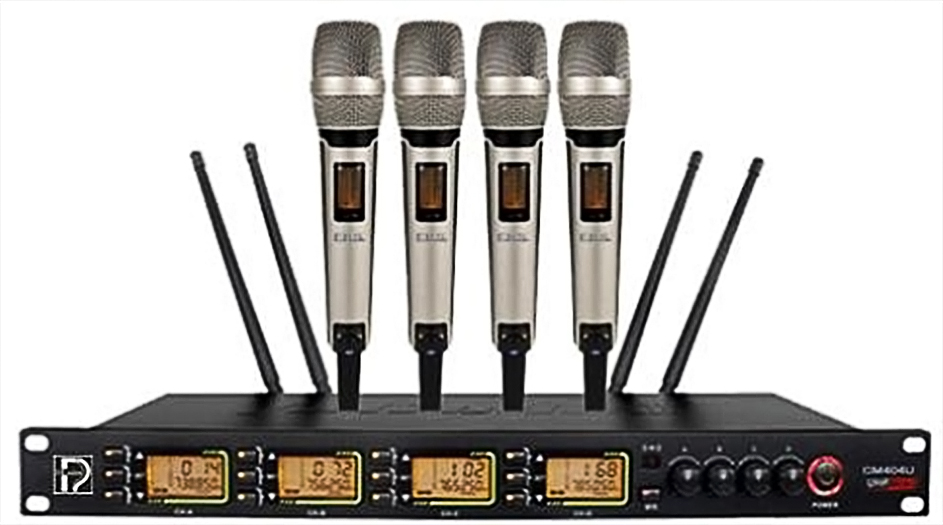

HM604U handheld wireless microphone
Product features:
1. The built-in frequency of 3 marshalling and stacking machines is adjusted with one key. The same frequency band can be easily used for three sets of stacking machines at the same time.
2. with IR infrared automatic frequency matching function, one-button automatic frequency locking.
3. The volume of four channels can be adjusted independently. 4+1 audio output is provided.
4. A variety of transmitters are available. The conference/hand hold/collar can be mixed and used in the launcher.
5. Backlit LED display indicates RF and AF signal strength, frequency, frequency group/channel and other working states.
6. With the same working frequency of 4 channels, transmitters can be exchanged at any time, greatly enhancing the flexibility of operation.
7. Adopt the latest UHF band wireless audio transmitting chip module IC. It has excellent RF performance and audio performance, and provides customers with professional sound quality experience.With the noise control of noise lock and digital pilot technology, when the transmitter is off, the pilot control will mute the AF signal to suppress the noise, and the corresponding channel of the receiver will be mute.Ensure the effective blocking of the dry signal.
8. Optional headwear or jacket is supported.
Technical parameters:
|
Receiver |
Ejector |
|
Frequency range: 600~690 |
Output power：High power30MW，Low power3MW |
|
Adjustable range: 50MHz |
Frequency response：40~18,000Hz，（+1 dB，-3 dB） |
|
Modulation method: FM |
Stray inhibition：-60db |
|
Number of channel: 200 |
Battery life: can be used for more than 20 hours on normal power transmission |
|
Channel spacing:300KHz |
Battery specification: 2 1.5V AA alkaline batteries |
|
Frequency stability:±0.005% |
Wireless program: mounted transmitter adopts 1/4 wave whip antenna |
|
Dynamic range:100dB |
Output power: high power 30mW;Low power 10 mw |
|
SNR:>105 dB |
Stray inhibition：-60dB |
|
Intermediate frequency：110MHz, 10.7MHz |
Power supply: two AA batteries 2 AA |
|
Distortion: ≤0.5% |
Use time: continuous use for 13 hours |
|
Sensitivity：12dBμV（80DbS/N） |
Use distance: the effective use distance in complex environment should not be less than 45 meters |
|
Stray inhibition：>75dB |
|
