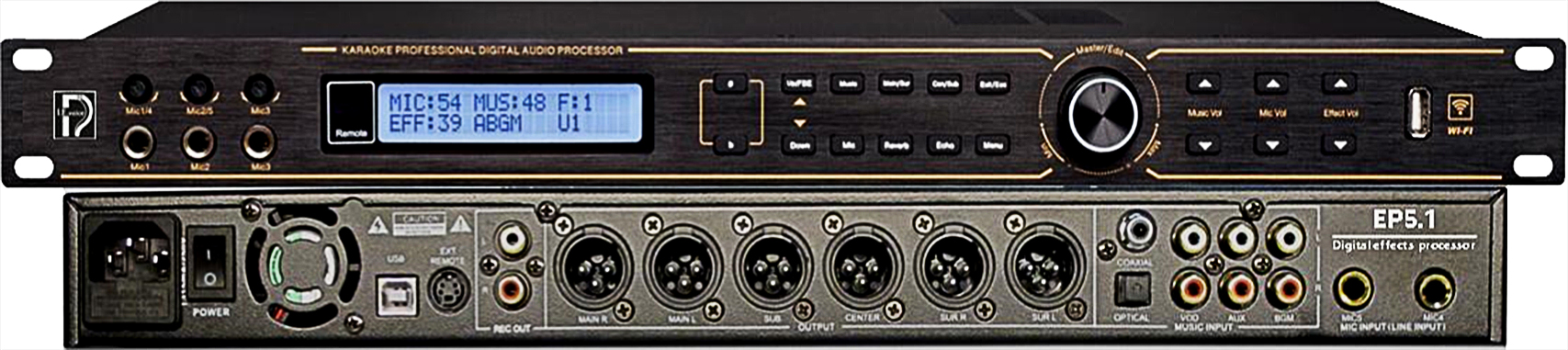

EP5.1 digital + analog dual effect KTV pre-processor

Product features:

1. The karaoke effector with the function of sound box processor can be adjusted independently.

2. 2 groups of 22 - segment parameter equalizing microphone, swing microphone adjustment.

3. wireless WIFI debugging, get rid of the trouble of wired connection, more high-end.(optional)

4. Drive-free USB connection, convenient and fast online way.

5. the exclusive creation of custom screensaver password, can prevent the machine and interface operation and read parameters, PK's exclusive edge.

6. Adopt 2Bit data bus and 32Bit DSP.

7. The music has 15 segments of parameter equilibrium;Music to main output high pass filter: 12dB/24dB(0hz-303hz)

8. The microphone is equipped with 22 parameter equalization segments;There is mike wind pressure limit function.

9. The main output is provided with a 10-section parameter equilibrium;There is a compression limiter.

10. After the output, there are 10 sections of parameter equilibrium;The middle output and ultra-low output are provided with 7 - section parametric equilibrium.

11. There are 8 feedback suppression modes: 1--8.

12. 10 modes can be stored.

13. Microphone output, main output, middle output, ultra-low sound output and rear output are equipped with voltage limit and delay function, with the function of tone change.

14. There are management mode and user mode, and the user mode cannot be stored after adjusting parameters.

15. The machine is equipped with a full-function menu, which can be set through the powerful PC interface;Coaxial digital signal input interface.

Technical parameters:

1. Maximum output level: 4V(RMS)

2. Music channel gain: MAX: 12dB

3. Microphone sensitivity: 64mV (Out: 4V)

4. SNR: >80dB

5. Input voltage: ~220V 50Hz

6. Size (length × width × height) : 483x215x50mm

7. Net weight: 3.3kg

8. Support wireless remote control (optional)
