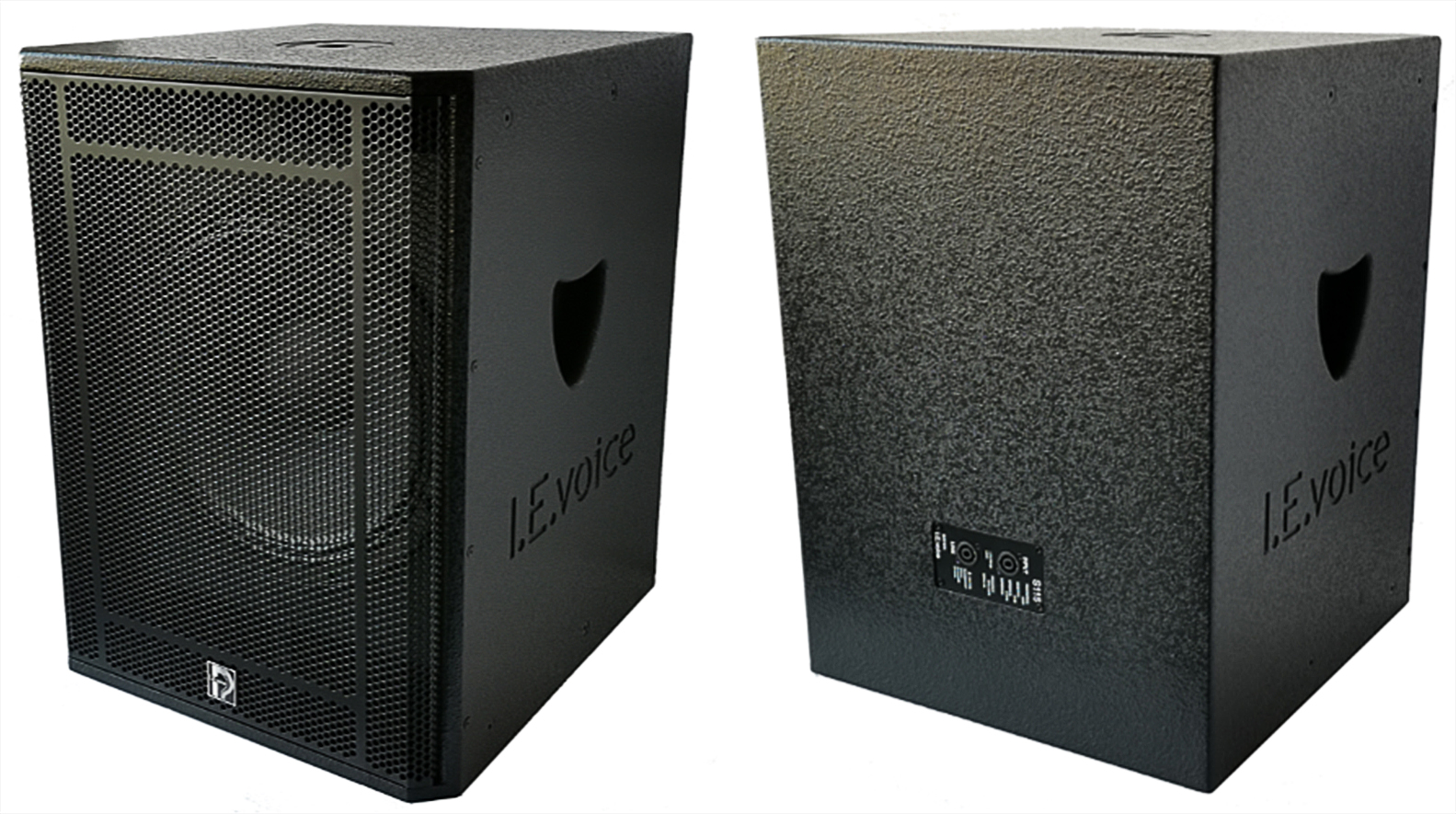

S115 low frequency speakers







Speaker features:

           The use of multi-layer solid wood deck according to the unique structural design concept, the production of a solid box and beautiful appearance of the visual effect, low frequency horn unit in the solid and unique design of the box structure, but also enhance the dynamic sense and dynamic saturation.

         A sturdy wooden case that supports mounting through mounting rods or stacks with Array speakers.


Application environment

         This model is suitable for professional mobile performance or fixed installation scene.Steel - reinforced 13 - layer birch box with very low distortion.The central array can be combined to improve the low frequency directivity.


Specification parameters:

Frequency response (-10db) : 35Hz - 800Hz

The rated impedance: 8 Ω

Sensitivity (1W/m) : 99dB

Maximum sound pressure: 131 dB

Unit structure: 1×15" bass

Rated power: 600W

Peak power: 1000W

Dimensions(WxHxD):470 x 650 x 585mm

Weight:23Kg(Contain the packaging

Color:Black
